Flat Work Ironer

About Flat Work Ironer

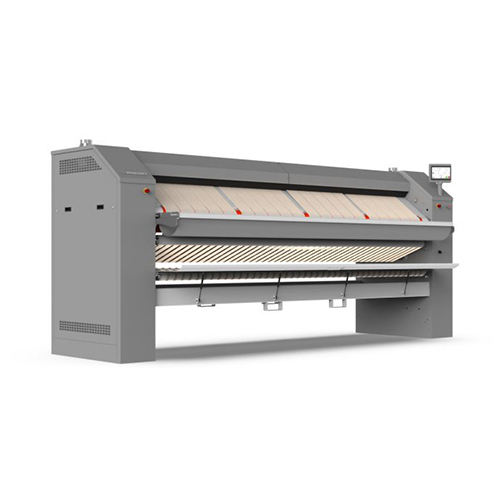

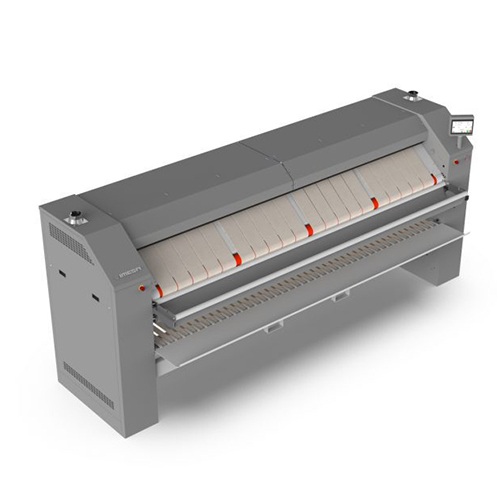

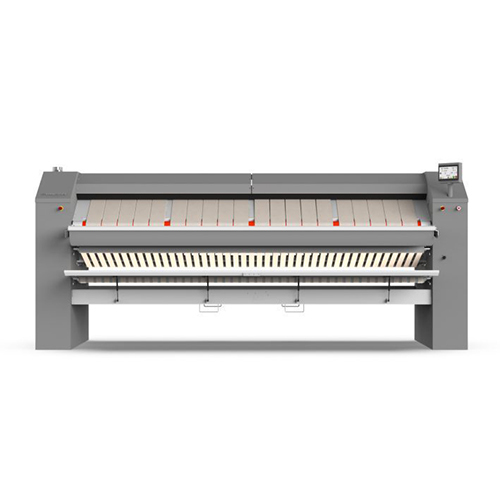

MCM 2500 - 2800 - 3200

• IMESA MCM series drying ironers guarantee high performance and reliability.
• Designed for maximum ironing quality, the complete MCM range is the ideal linen ironing solution for restaurants, hotels, nursing and retirement homes and hospitals.

• IM10 computer touch screen for easy programming and monitoring of drying cycles
• Like a real tablet, the IM10 touch screen has the same intelligibility, ergonomics and potential as a computer.
• Memorisation of infinite ironing programmes
• Parameters can be modified during the cycle
• IMESA MCM series 502 mm diam. drying ironers are available with 2500 mm, 2800 mm and 3200 mm roller.
• The linen remains in contact with the roller for 82% of its circumference perimeter
• Available in BASIC version with front/back MOTORISED OUTPUT, FOLDER and automatic FEEDER.
• Models with automatic FEEDER and FOLDER are equipped with PLC control with 128 ironing programs.

• 3 heating methods: electric, steam, gas
• Automatic speed/temperature compensation: the speed of the roller is set automatically according to the temperature, facilitating the operators work and guaranteeing top quality results.
• System cooldown: saves energy and helps preserve the ironing belts.
• Available with motorised linen exit on two sides: faster ironing, higher productivity and more than one operator.
• The linen can be ironed on two independent lines, with the possibility of configuring the type of fold: single, double or none.
• Available with suction feed table for perfect fabric feed, enabling a single operator to iron and fold even large items.
• The version with gas heating guarantees uniform heating of the roller and considerable energy savings, thanks to the particular arrangement of the internal fume circulation.

MODELLI

MCM 2500

MCM 2800

MCM 3200

Ironing width

2505 mm

2715 mm

3130 mm

Ironing width with feeder

1978 mm

2190 mm

2608 mm

Maximum length of fabrics for first fold

3500 mm

3500 mm

3500 mm

Hourly production*

62 kg/h

68 kg/h

80 kg/h

Evaporation*

31 lt/h

34 lt/h

40 lt/h

Rotation Speed

1-6 mt./min.

1-6 mt./min.

1-6 mt./min.

Ironing Humidity Required

50%

50%

50%

Humid Air Drain

100 mm

100 mm

100 mm

Smokes Drain (Gas Version)

100 mm

100 mm

100 mm

Basic machine and with motorised EXIT dimensions: WxDxH

3414x1358x1708 mm

3610x1358x1708 mm

4027x1358x1708 mm

Machine dimensions with OUTPUT, FOLDER and INTRODUCER: LxWxH

3413x1655x1708 mm

3610x1655x1708 mm

4027x1655x1708 mm

Net weight basic machine and with motorised EXIT

1283 Kg

1371 Kg

1522 Kg

Net Weight with OUTPUT, FOLDER and INTRODUCER

1656 Kg

1730 Kg

1856 Kg

Packing dimensions basic machine or with motorised EXIT: WxDxH

3420x1100x1868 mm

3630x1100x1868 mm

4040x1100x1868 mm

Packing dimensions machine with EXIT, FOLD and FEEDER: WxDxH

3420x1300x1868 mm

3630x1300x1868 mm

4040x1300x1868 mm

Gross weight basic machine and with motorised EXIT

1351 Kg

1443 Kg

1598 Kg

Gross weight with EXIT and FOLD

1726 Kg

1804 Kg

1930 Kg

Electric power basic machine

49,3 kW

52,9 kW

61,9 kW

Steam power basic machine

0,7 kW

0,7 kW

0,7 kW

Gas power basic machine

0,9 kW

0,9 kW

0,9 kW

Electrical Machine Power with EXIT

49,5 kW

52,9 kW

61,9 kW

Steam Machine Power with EXIT

0,9 kW

0,9 kW

0,9 kW

Gas Machine Power with EXIT

1,1 kW

1,1 kW

1,1 kW

Electrical Machine Power with EXIT, FOLDER and INTRODUCER

49,5 kW

53,1 kW

62,1 kW

Steam Machine Power with EXIT, FOLDER and INTRODUCER

0,9 kW

0,9 kW

0,9 kW

Gas Machine Power with EXIT, FOLDER and INTRODUCER

1,1 kW

1,1 kW

1,1 kW

Hourly steam Consumption

100 Kg/h

110 Kg/h

125 Kg/h

Air compressed consumption (with EA or EB)

500 lt/h

500 lt/h

500 lt/h

Air compressed pressure (with EA or EB)

6 bar

6 bar

6 bar

Basic machine container 20" - 40" loading plan

2 - 6 pcs

2 - 6 pcs

2 - 4 pcs

Machine with EXIT, FOLD and FEEDER container 20" - 40" loading plan

1 - 3 pcs

1 - 3 pcs

1 - 2 pcs

Advanced Performance for Commercial Applications

Designed to handle high volumes, this flat work ironer efficiently processes bedsheets, pillow covers, napkins, and table linen. With automation options (semi-automatic/automatic) and variable speed settings, it optimizes productivity for commercial laundry environments. Its sturdy, stainless steel construction ensures lasting performance and easy maintenance.


Flexible Heating and Control Options

Operators can select from electric, steam, or thermic fluid heating sources to suit their facility's preferences. The user-friendly digital control panel with display streamlines adjustments for feeding speed and heat, allowing precise and reliable operation every time.


Safety and Customization Combined

Built with robust safety features like emergency stop and thermal cut-off, this ironer prioritizes operational safety. Size, voltage, and roller configuration can be tailored, making this solution adaptable for different space and capacity requirements.
